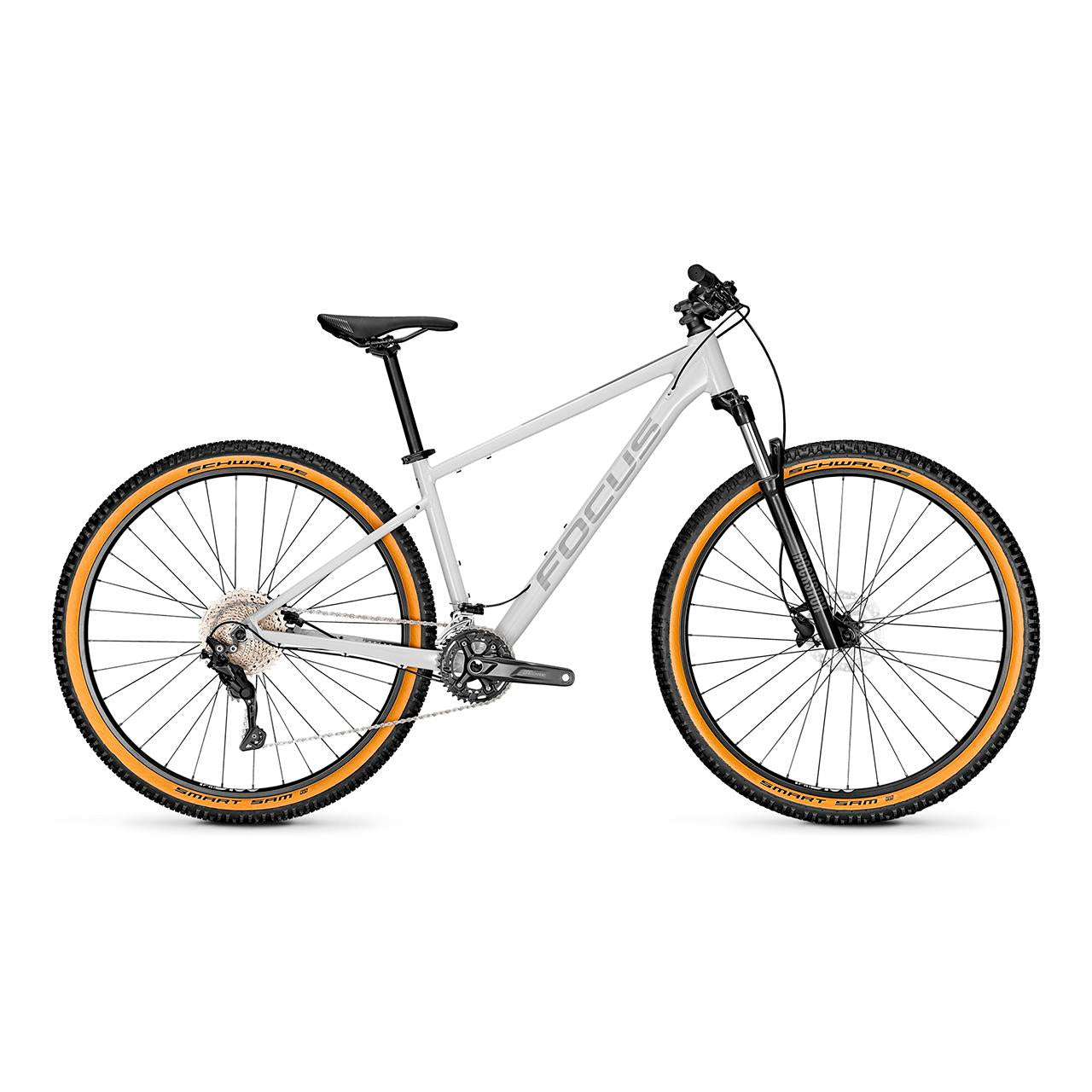

Focus Whistler 3.8

Focus Whistler 3.8

Reduced stocks

€449,00 EUR
€999,00 EUR €449,00 EUR
On offer Worn out
Taxes included. Shipping costs Calculate the check-out.
Size

  • A wheel size that fits your height

    With WHISTLER you have the ideal wheel size to suit your height and needs: WHISTLER in sizes from XL a M It is equipped with 29" wheels. The sizes S e XS They have 27.5" wheels.

  • Reliable braking power and integrated design

    When faced with risky situations, you need a partner you can rely on. That's why we've equipped our WHISTLER with disc brakes to ensure consistent braking performance and optimal braking behavior in all weather conditions. We route all cables through the frame downtube for better protection and durability, and for a clean look.

  • WHISTLER 3.8 Features

    Rockshox Judy, Coil, QR

    All cables integrated into the frame

    Option to mount pannier rack & mudguard

Specifications


Frame
6061 aluminum, 3D forging, disc, internal cable routing, post mount 160 mm

Fork
Rockshox Judy, Coil, QR, 100 mm

Fork excursion
80mm (XS-S) / 100mm (M-XL)

Change
Shimano Deore M5100, 2x11-speed

Rear derailleur
Shimano Deore M4120, 11-speed

Crankset
Shimano Deore FC-MT5100, 36/26T

Cassette
Shimano Deore CS-M5100, 11-speed, 11-42T

Handlebar
Riser, Aluminium, 720mm

Knobs
Velo VLG108

Handlebar stem
Aluminum, 31.8 mm, 6°

Front/rear brakes
Shimano MT200 hydraulic / Shimano MT200 hydraulic

Saddle
Saddle Focus

Seatpost
Alloy, 27.2mm

Circles
Aluminium, 29"

Tyres
Schwalbe Smart Sam 2.25

Front hub
Shimano HB-TX505, QR, 5x100 mm

Rear hub
Shimano TX500, QR, 5x135 mm

Rays
Zink, black

Allowable system weight
110kg

*The manufacturer reserves the right to change information on the website without notice, including specifications, models, colors and materials.

*Images are for indicative purposes only and may not correspond to the product description.

Size chart

Segment Section XS S M L XL
Size in mm 340 360 420 460 500
Handlebar width 720 720 720 720 720
Handlebar stem length 60 60 60 60 60
Crank length 170 170 170 170 170
Seat post length 420 500 420 460 500
A Seat tube length 340 360 420 460 500
B Top tube length 549 574 606 636 666
C Steering angle (°) 68 68 68 68 68
D Seat tube angle (°) 74 74 74 74 74
E Chain stay length 440 400 450 450 450
F Bottom bracket drop 48 48 60 60 60
G Head tube length 120 120 120 140 160
H Fork length 497 497 515 515 515
I Fork offset 42 42 51 51 51
J Wheelbase 1079 1104 1155 1187 1220
K Stacks 605 605 630 649 667
L Reach 375 400 425 450 475
Technical Details
Size Chart
