Lightweight Meilenstein EVO disc tubeless Schwarz Edition Wheels

Lightweight Meilenstein 24 EVO D Wheelset - Schwarz ED - Clincher/Tubeless | Centerlock - 12x100mm | 12x142mm

For the perfect wheel, all factors must be right. It is no coincidence that the MEILENSTEIN is the most successful model among Lightweight wheels. With its incredible features and versatile applications, the MEILENSTEIN has been a benchmark in carbon wheel construction for years and inspires road cyclists worldwide.
The dream of a perfect all-around wheel becomes reality with the Lightweight MEILENSTEIN. With this wheelset, you can master road use fully, enjoy flat rides, but also conquer high mountain routes. The exceptional braking performance is impressive both in dry and wet conditions.

The MEILENSTEIN is the Lightweight classic. Designed from the start for all-around use, this wheel still demonstrates its ingenious versatility. The EVO model also has all the features of its predecessor but takes a step forward. Thanks to its robust construction, the MEILENSTEIN is approved for the first time for Gravel use as well.

The Lightweight MEILENSTEIN is not only particularly light but also particularly stiff. The stiffer the carbon wheel, the more stable it is in direction. The EVO version uses state-of-the-art high modulus carbon fibers which, combined with Tubeless technology, guarantee razor-sharp control, unmatched braking precision, and maximum propulsion. And above all, the MEILENSTEIN rides even more comfortably than before.

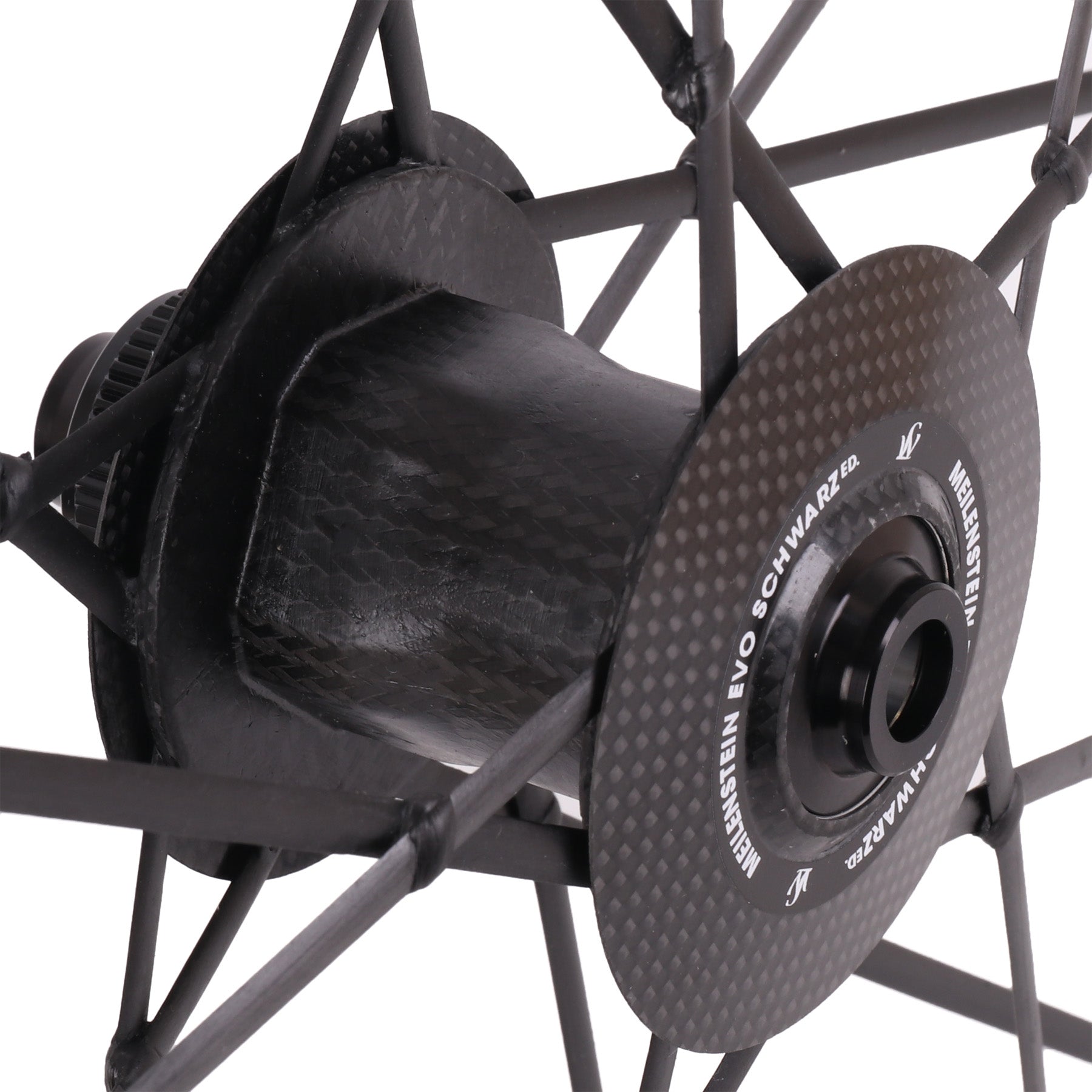

The high stiffness is further increased by the connection of the spokes to the hub. The Disc version of the MEILENSTEIN is the so-called Pentagon hub. This features a hub shell developed and patented by Lightweight, which also increases safety by ensuring that the wheel hardly twists during braking.

Technical details of the Meilenstein 24 EVO Disc wheelset

• carbon rims in special CFK fibers (Generation EVO)
• external width: 24 mm / internal width: 18.2 mm
• profile height: 48 mm
• tire type: wired tire (Clincher), folding / Tubeless Ready

• Lightweight Pentagon hubs with DT Swiss 240s internals
• CeramicSpeed ball bearings as part of the equipment Schwarz ED
• brake disc mount: Centerlock
• installation width: 12 x 100 mm / 12 x 142 mm (through axle)

• full carbon aerodynamic spokes
• number of spokes: 20 (front / rear)
• spoke pattern: double crossed (both sides)

• usage area: road bike, Gravel Cyclocross / competition, training
• maximum system weight: 120 kg

Weight (manufacturer specification):

approx. 730 g (rear wheel)

Delivery volume:

(without brake discs)

SPECIFICATIONS
