Merida Eone-Forty 475 EQ

Merida Eone-Forty 475 EQ

List price €4.099,00
List price €5.790,00 Price €4.099,00
On offer Worn out
Taxes included. Shipping costs Calculate the check-out.
Color
Size

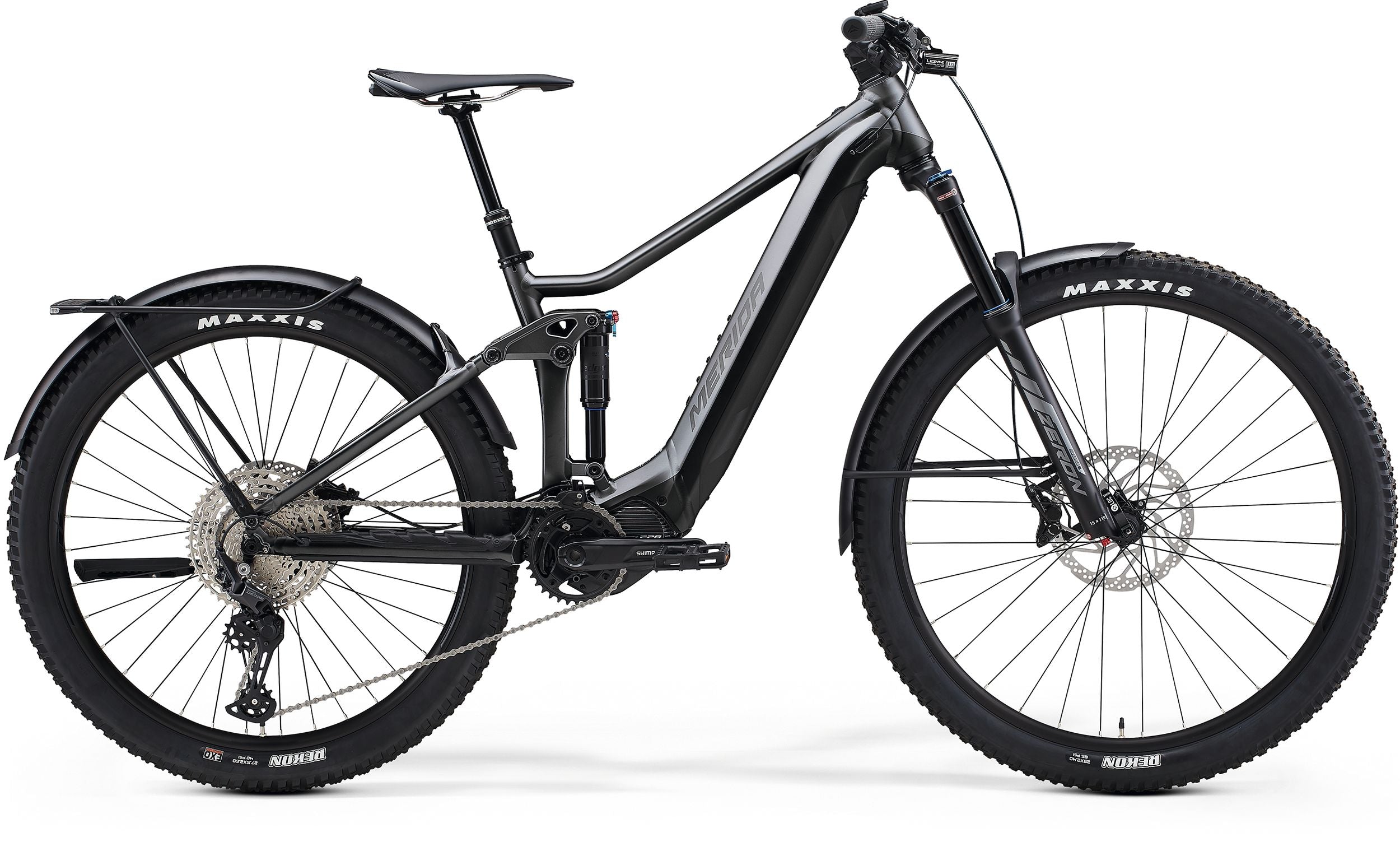

Merida Eone Forty 475 EQ

It is the definitive crossover. The Eone-Forty 475 EQ is able to deal with accidental land, whether they are city streets full of holes or dirt outputs on the weekend. The powerful Shimano Ep8 transmission unit is combined with a high capacity battery with 750 Wh elegantly integrated in our robust aluminum frame. The precise guide is ensured with our configuration of differentiated wheels size, geometries and fluid suspension, so you will be able to manage any obstacle. Add the Shimano transmission with a fluid gearbox and the powerful four -piston brakes and you will have a mix of practicality, control and difficult capacity to beat.

Specific



  • Material: aluminiium
  • 133mm Suspension Travel
  • 27.5x2.8 "Max. Wheelsize
  • 148x12mm Axle Standard
  • intuube
  • Air Boost
  • 140mm
  • TAPERED
  • 51mm fork offset
  • 29x2.4 "Max Wheelsize
Steering series: Merida 8152
-
  • 780mm width
  • 20mm laughed
  • Material: aluminiium
  • 35mm diameter
  • 0 ° STEM Angle
  • Supernova Mount
  • 50 mm
Knobs: Merida Expert ec
-
Commands: Shimano Deore M4100

  • Material: aluminiium
  • 34.9mm diameter
  • 0mm setback
Mors. Reggisella: Merida Expert
-
Pedals: VP VP-537
-
CHAIN: KMC E10S
-
  • 29mm Inner Width
  • Material: aluminiium
  • Tubeless Ready (Tubeless Tape and Valves Not Included)
  • 110x15mm width front hub
  • 32 Spoke Holes
  • Centerlock
  • 148x12mm Width Rear Hub
  • 36 Spoke Holes
  • Centerlock
  • Including Removeble Lever, 6/4mm Allen Key
Raggi: Black Stainless
-
  • 29x2.4 "
  • wire
  • Dual
  • 27.5x2.6 "
  • wire
  • Exo
  • Stvzo
  • Reverse Merida Custom Mount
  • Stvzo
  • Integrated in Merida Mik Carrier
Luggage rack: Merida MA006
-
Embide: Attranvelo ed-100-PC
-
DISPLAY: Shimano SC-E5003
-
Total permitted weight: 140 kg



To reduce production and delivery times, sometimes we are forced to make changes to the last minute specifications. Keep in mind that these changes may not reflect on these pages and images of the products.





Chassis size M THE XL XXL
Tire size 29/27.5" 29/27.5" 29/27.5" 29/27.5"
St reggisella mm. 415 430 450 470
TT Top Tube mm. 581 603 624 645
Cs rear wagon mm 439.5 439.5 439.5 439.5
Hta gradi steering angle 66.5 66.5 66.5 66.5
Is grades corner tube column 76.5 76.5 76.5 76.5
BD central movement mm. 25 25 25 25
HT HEIGHT TUBE steering mm. 115 120 125 130
Fi Length Forcella mm. 551 551 551 551
R Reachs mm 430 450 469 489
S stacks mm 627 631 635 640
WB Pottense mm 1182 1204 1226 1248
Sh stand over height mm 730 727 733 747
