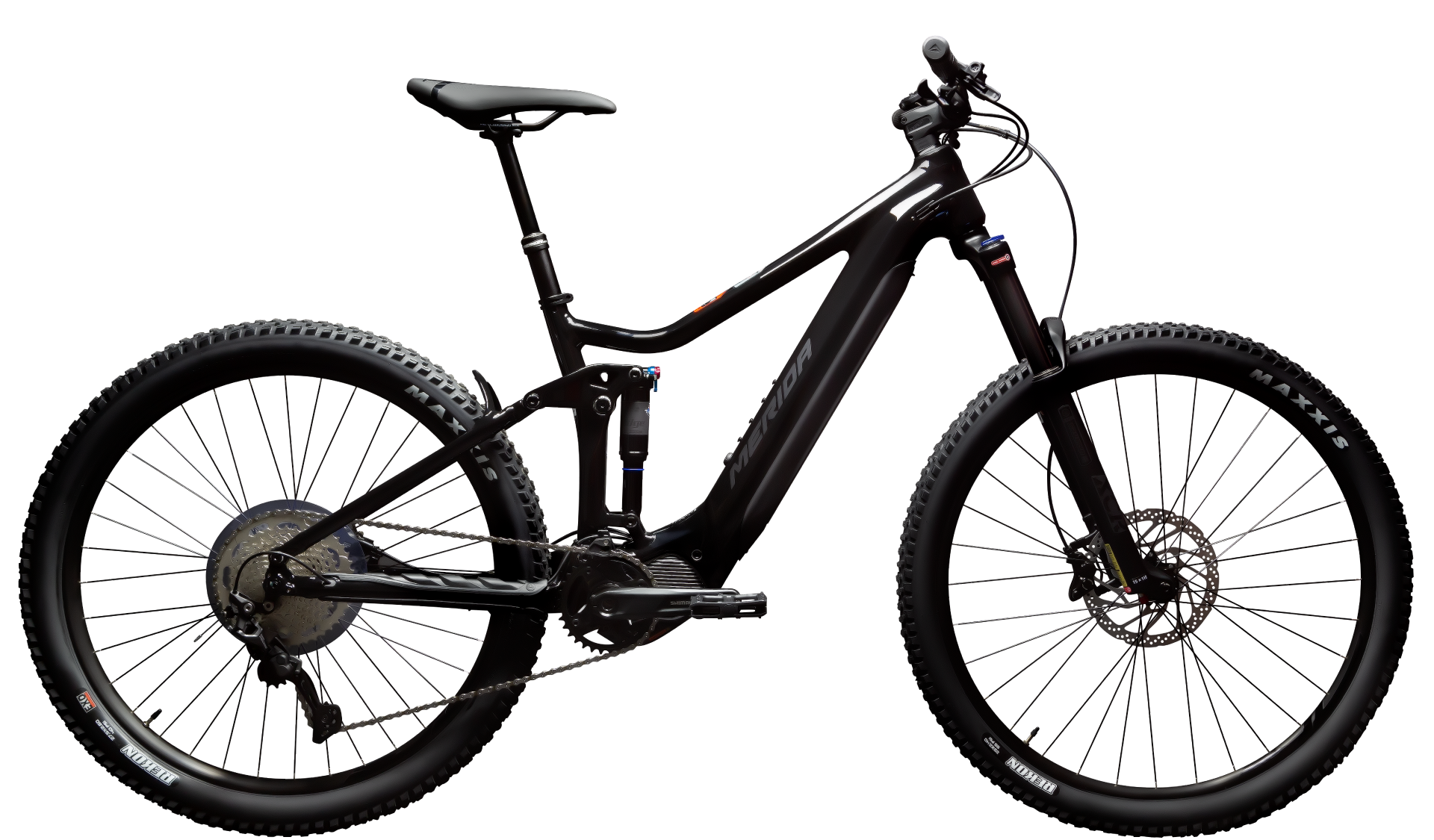

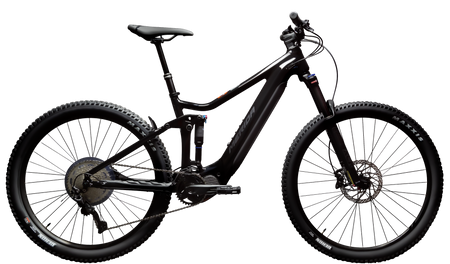

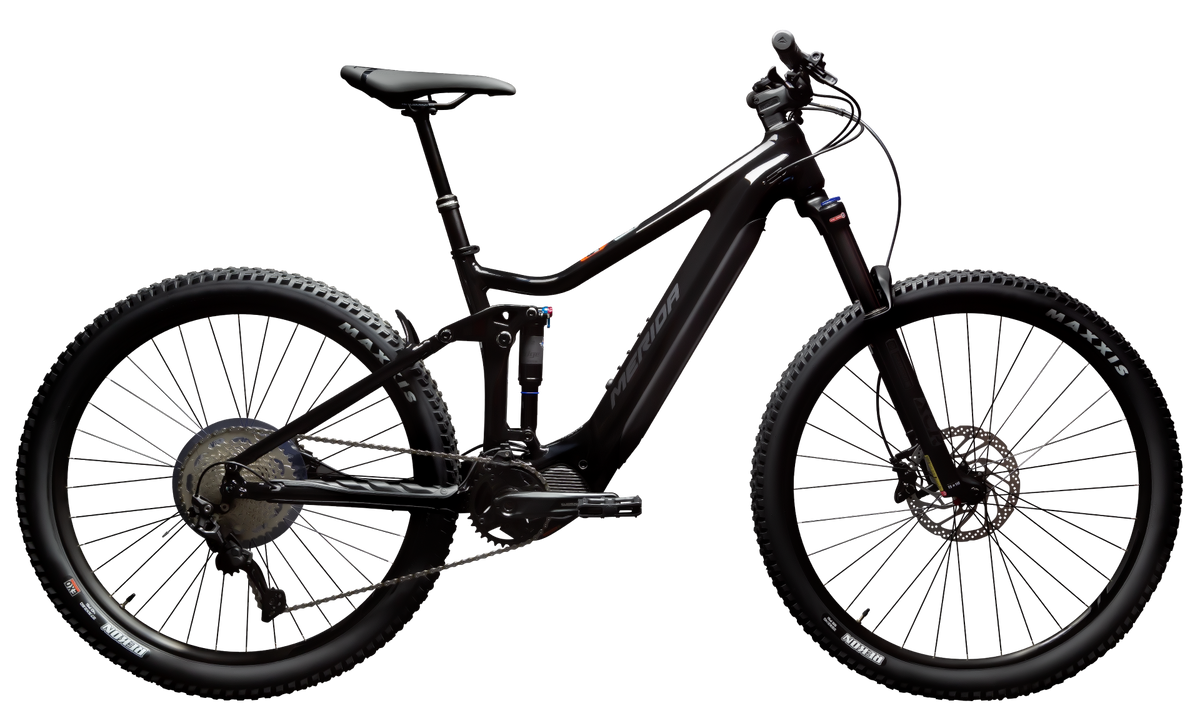

Merida eONE-FORTY 400
Couldn't load pickup availability
Regular price
€1.914,57
incl. VAT
Regular price
-63%
€5.131,72
Sale price
€1.914,57
incl. VAT
The Merida eONE-FORTY 400 proves that you don't need to spend a fortune to get a robust trail eMTB that can keep up with your adventures, featuring the refined Shimano EP8 drive unit, a sturdy aluminum frame, and a sleekly integrated 630 Wh battery. Suntour suspension and our differentiated wheel size setup ensure true off-road capability combined with smile-inducing agility. Quality components like the wide-range Shimano drivetrain and powerful four-piston brakes always keep you in control.
Specifications:
FRAME: eONE-FORTY LITE III
- material: aluminum
- 133mm suspension travel
- 27.5x2.8" max. wheelsize
- 148x12mm axle standard
- intube
FORK: SR Suntour XCR34 LOR DS
- Air Boost
- 140mm
- Tapered
- 51mm fork offset
- 29x2.4" max wheelsize
SHOCK ABSORBER: SR Suntour EDGE
- lockout
BRAKES: Shimano M4100
- 4 piston
- 2 piston
DISCS: Shimano RT30 / Shimano RTEM300
- 203 mm
- 180 mm
HEADSET: MERIDA 8152
HANDLEBAR BEND: MERIDA EXPERT eTR
HANDLEBAR STEM: MERIDA EXPERT eTRII
GRIPS: MERIDA EXPERT EC
DERAILLEUR: Shimano Deore RDM5120 10
CONTROLS: Shimano SL -MT500-L clamp band / Shimano Deore M4100
- RC1 clamp band
CRANKSET: Shimano FCEM600
- 165 mm
SEATPOST: MERIDA COMP TR
- 30.9mm diameter
- 0mm setback
- S/M 100mm travel seatpost - L/XL 125mm travel seatpost - XXL 150mm travel seatpost
SEATPOST CLAMP: MERIDA EXPERT
SADDLE: MERIDA COMP SL
- V-mount
PEDALS: VP VPE-537
CHAIN: KMC e10s
CRANKSET: Shimano CRE70-B
- 34 teeth
CASSETTE: Shimano M4100
- 11-46 teeth
- 10 speed
RIMS: MERIDA COMP TR
- 29mm inner width
- material: aluminum
- Tubeless ready (tubeless tape and valves not included)
HUBS: Shimano MT400-B
- 110x15mm width front hub
- 32 spoke holes
- Centerlock
- 148x12mm width rear hub
- 36 spoke holes
- Centerlock
AXLES: MERIDA EXPERT TR
- including removable lever, 6/4mm allen key
SPOKES: Black stainless
TIRES: Maxxis Rekon
- 29x2.4"
- wire
- DUAL
- 27.5x2.6"
- wire
- EXO
FENDERS: C093-02F + C093-02R
MOTOR: Shimano EP800
- 85Nm
BATTERY: Shimano E8036 630Wh / Shimano E8035 504Wh for S only
DISPLAY: Shimano SC-E5003A
MAXIMUM ALLOWED WEIGHT: 140 kg
Geometry:
| FRAME SIZE | M | L | XL | XXL |
| TIRE SIZE | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
| ST SEATPOST MM | 415 | 430 | 450 | 470 |
| TT TOP TUBE MM | 581 | 603 | 624 | 645 |
| CS REAR CENTER MM | 439.5 | 439.5 | 439.5 | 439.5 |
| HTA HEAD TUBE ANGLE DEGREES | 66.5 | 66.5 | 66.5 | 66.5 |
| STA SEAT TUBE ANGLE DEGREES | 76.5 | 76.5 | 76.5 | 76.5 |
| BD BOTTOM BRACKET MM | 25 | 25 | 25 | 25 |
| HT HEAD TUBE HEIGHT MM | 115 | 120 | 125 | 130 |
| FI FORK LENGTH MM | 551 | 551 | 551 | 551 |
| R REACHES MM | 430 | 450 | 469 | 489 |
| S STACKS MM | 627 | 631 | 635 | 640 |
| WB WHEELBASE MM | 1182 | 1204 | 1226 | 1248 |
| SH STAND OVER HEIGHT MM | 730 | 727 | 733 | 747 |
The eONE-FORTY might be the little brother of the award-winning eONE-SIXTY, winner of numerous tests, but when it comes to delivering agile trail handling with superb flow and fun, it is no second fiddle to anyone. Equipped with Shimano's powerful yet refined EP8 drive unit and a 630 Wh or 750 Wh battery (model-specific) perfectly integrated into the frame, it is the perfect partner for all kinds of adventures. The trail-specific balanced geometry is paired with a mixed 29er/27.5" wheel setup that offers flow and fun for riders of all skill levels, while a steeper seat angle increases climbing ability, ideal for an all-day e-bike mission. The low bottom bracket and lower standover height mean greater confidence, while 140 mm of front wheel travel and 133 mm of rear wheel travel provide control, comfort, and real capability on rough terrain. The versatility of the eONE-FORTY is further enhanced by the EQ model, which is fully equipped with fenders, rack, lights, and kickstand so it can tackle tough roads and muddy trails.
×
![]()
×
![]()
