Garelli Audax XC2

Out of stock
SKU: GA22GAB036M
Size
€2.569,89 incl. VAT
-29% €3.614,38 €2.569,89 incl. VAT

Responsive, agile, and fast. To ensure excellent handling in all pedaling situations, the steering of the Audax XC2 hardtail is designed with a 68° angle. The motor plate construction is gravity casting, meaning no welds for better design and greater strength.

The 720Wh battery uses high-performance 21,700 cells that guarantee unprecedented range, which can reach up to 260 km. The battery is fully integrated into the frame for a clean and aerodynamic design.

The Oli High Vision display is designed with a slim and elegant design, offering the rider full control over all motor parameters, such as: power delivered by the motor, pedaling cadence, cyclist's pedaling power. It also features an automatic brightness adjustment system to adapt to any usage condition.

Specifications

TIRES 29" X 2.6" PIRELLI SCORPION ENDURO M OR CST PATROL
WHEELS FSA WHSET E-MTB ALUMINUM GE30 (29")
FRAME HYDROFORMED ALUMINUM
FORK SUNTOUR XCM AIR BOOST TRAVEL 120MM BLACK STANCHION
HANDLEBAR STEM ALUMINUM TDS-D600A EXTENSION 50MM
HANDLEBAR ZOOM 320BT MTB W:740MM. X 6° BARBORE 31.8MM.
SADDLE SELLE ITALIA MODEL X BB FEC BOOST
SEATPOST ZOOM SP-406 350MM
CRANKSET MICHE TOOTHED CHAINRING 34 TEETH
BRAKES HYDRAULIC FORMULA BRAKE KIT DISC CARE FRONT 180MM, REAR 180MM
GEARSHIFT SHIMANO SHIFT LEVER, SL-M6100-R, DEORE 12 SPEED
DERAILLEUR SHIMANO RD-M6100, DEORE, SGS 12 SPEED
CASSETTE SRAM EAGLE PG 1210/1230 11-50T 12 SPEED
DISPLAY OLIEDS MULTIFUNCTION COLOR DISPLAY
MOTOR OLI EDS MOTOR TORQUE SYSTEM 250W SPORT (85NM)
MAX SPEED 25 KM/H
BATTERY LITHIUM INTEGRATED INTO THE FRAME 36V 20AH 720WH REMOVABLE
BATTERY WEIGHT 3.490 KG
CHARGING TIMES 8/10 HOURS WITH STANDARD CHARGER 4/5 HOURS WITH OPTIONAL CHARGER
MINIMUM CHARGE 30-40 DAYS
RANGE SEE TABLE
WEIGHT 24.9 KG
MAXIMUM LOAD 100KG

Components and technical features may change without prior notice.

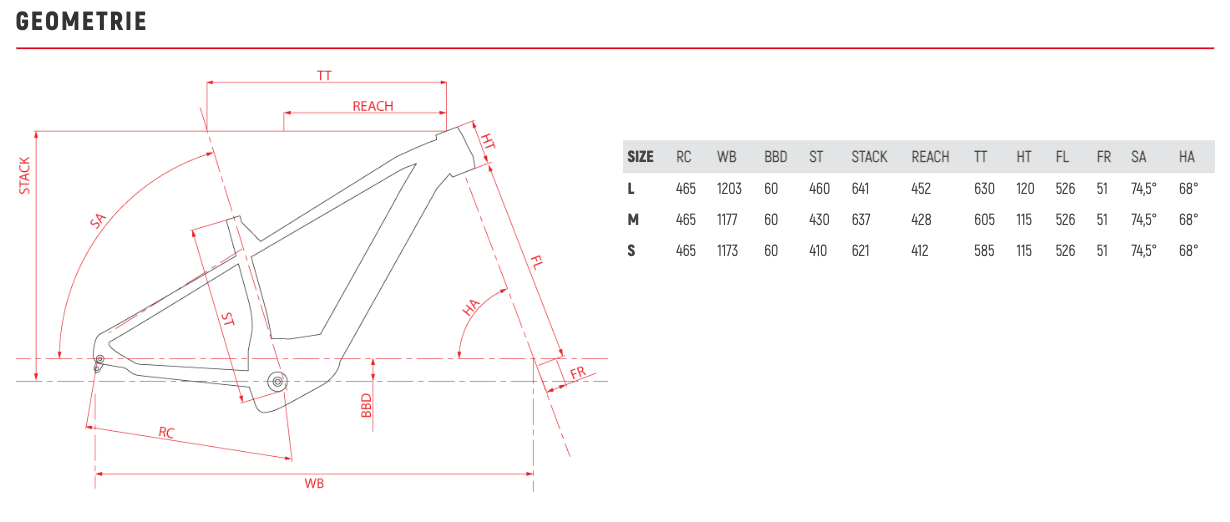

GEOMETRIES



SIZE RC WB BBD ST STACK REACH TT HT FL FR SA HA
L 465 1203 60 460 641 452 630 120 526 51 74.5° 68°
M 465 1177 60 430 637 428 605 115 526 51 74.5° 68°
S 465 1173 60 410 621 412 585 115 526 51 74.5° 68°
