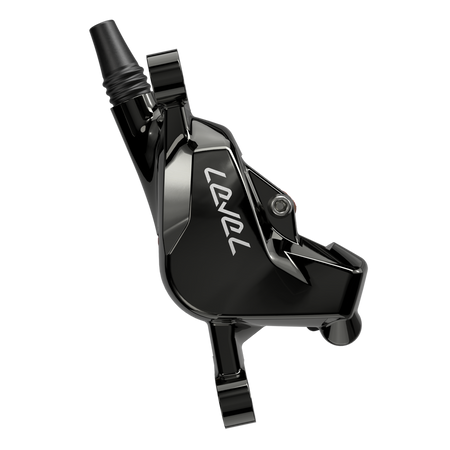

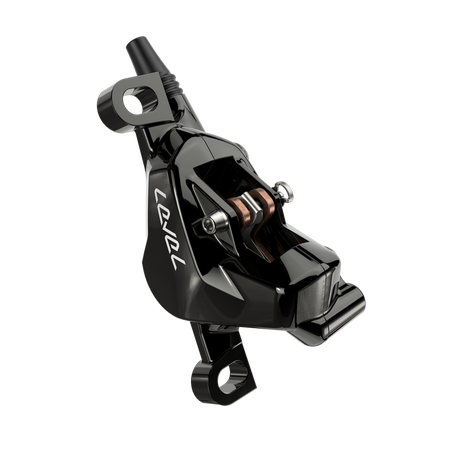

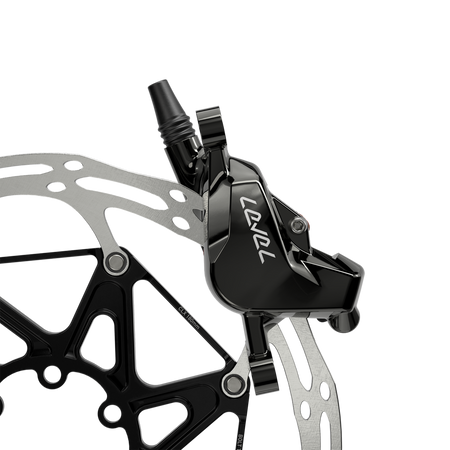

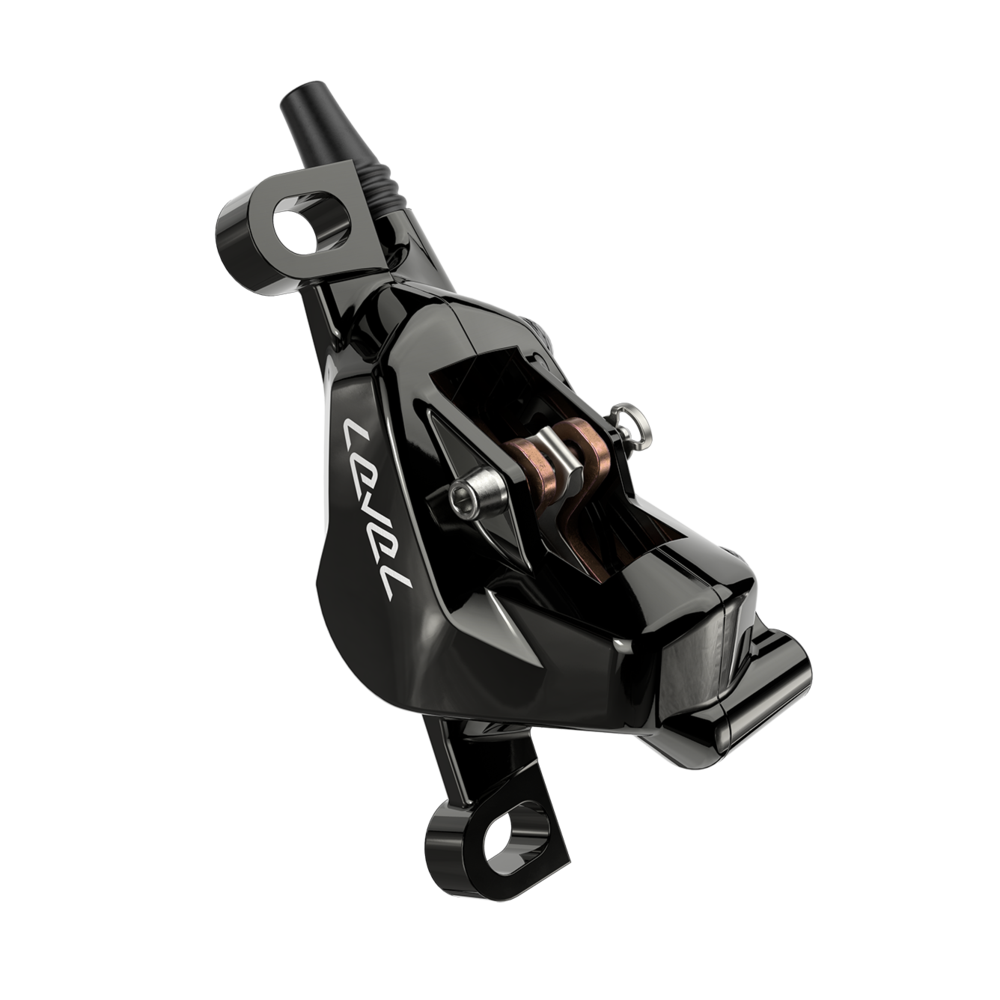

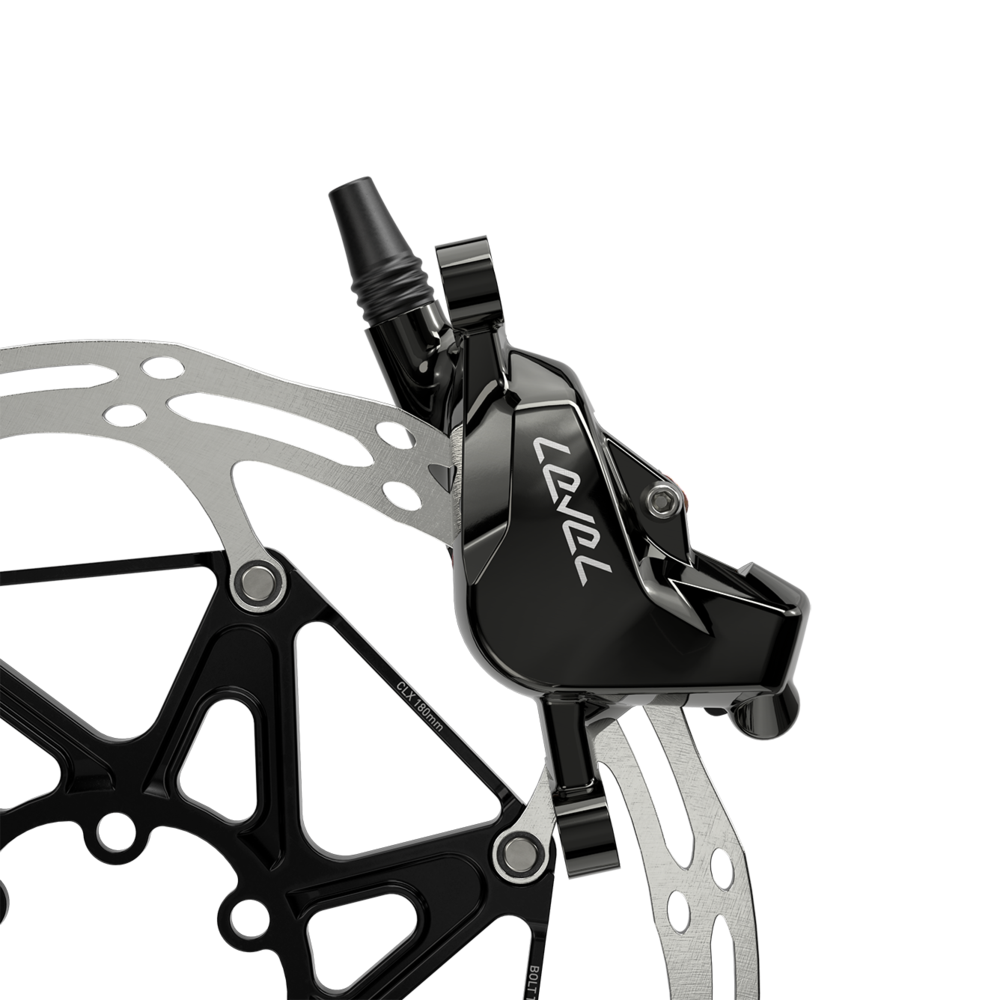

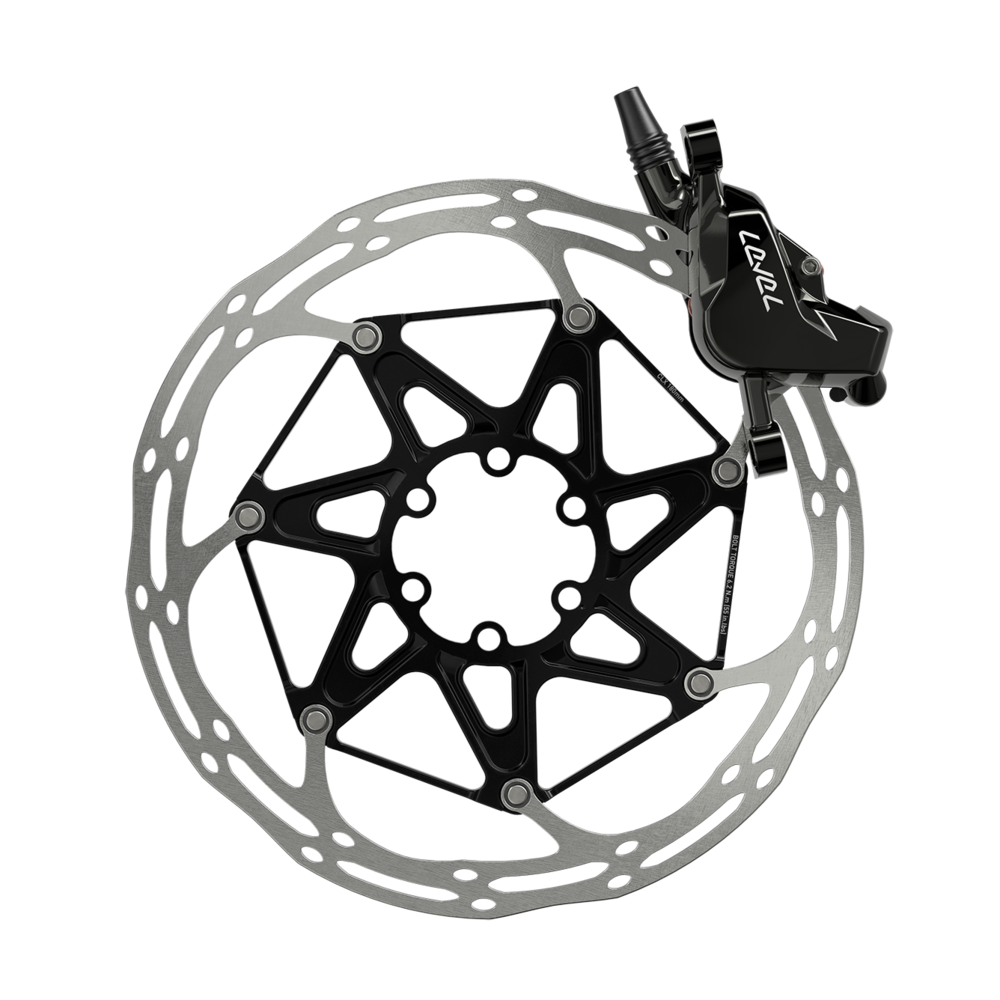

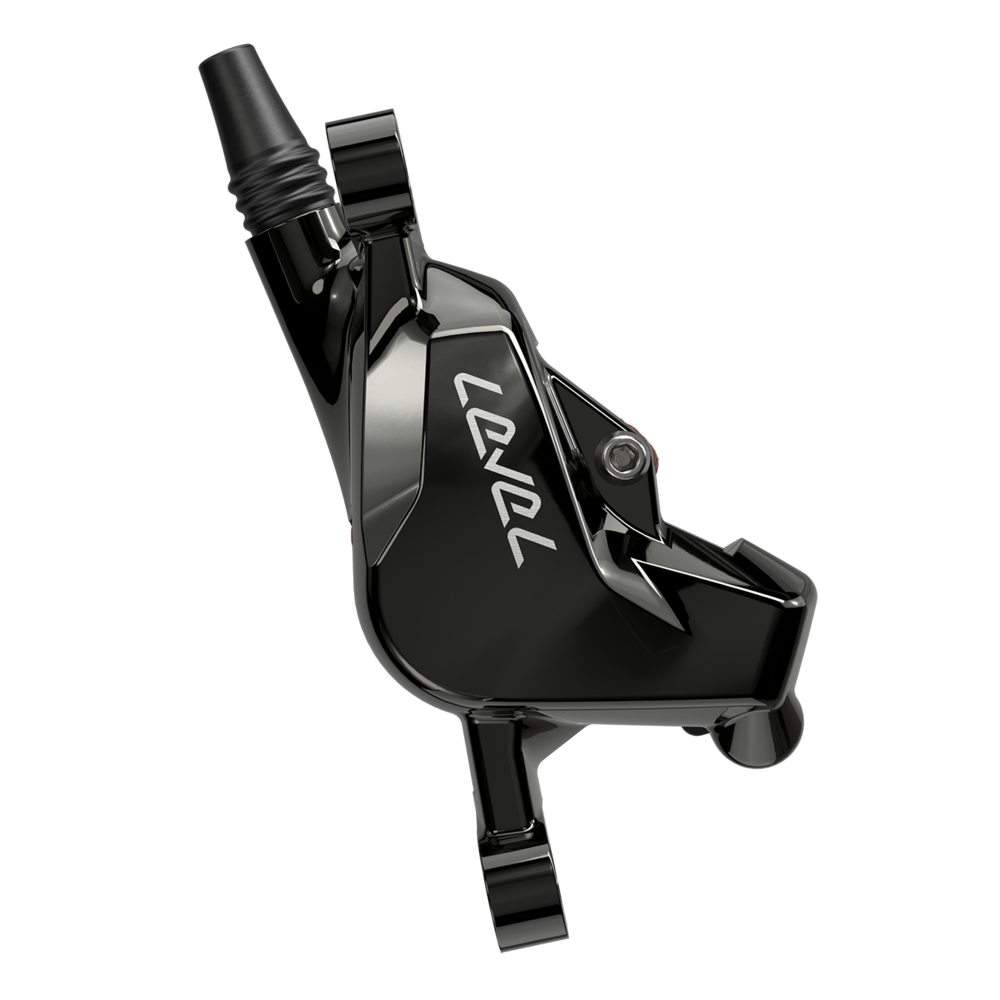

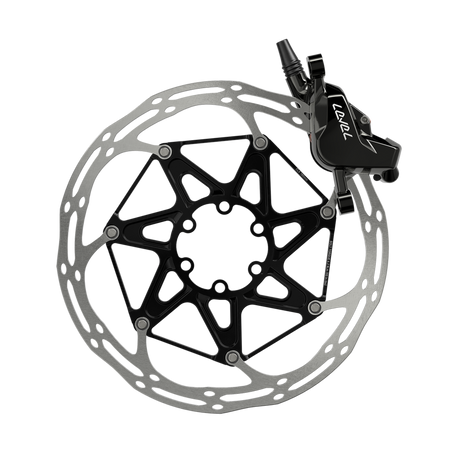

Sram Level Ultimate Stealth 2-Piston Disc Brake

Out of stock
SKU: 00.5018.196.000 Barcode: 0710845872327
Variant
€200,63 incl. VAT
-41% €342,74 €200,63 incl. VAT

Level Ultimate Stealth combines the top-tier Level Ultimate with the new stealth body to give you one of the lightest and sleekest brakes on the market. Offers the power-to-weight performance you expect from Level with a new lever design made specifically to create a clean, fast-looking cockpit.

FEATURES
  • Invisible body designed to complement our AXS cockpits
  • Modern XC power for today’s toughest races
  • Tool-free reach adjustment for easy customization

Technology

Expandable Bladder

With this new caliper fluid circuit, the bleed port has been moved to the bottom of the caliper and all four piston bores can communicate. This way, during bleeding, the fluid naturally fills the caliper, resulting in easier and more consistent bleeding.

Direct Link

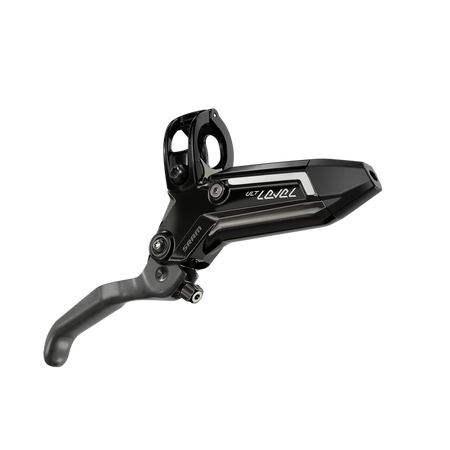

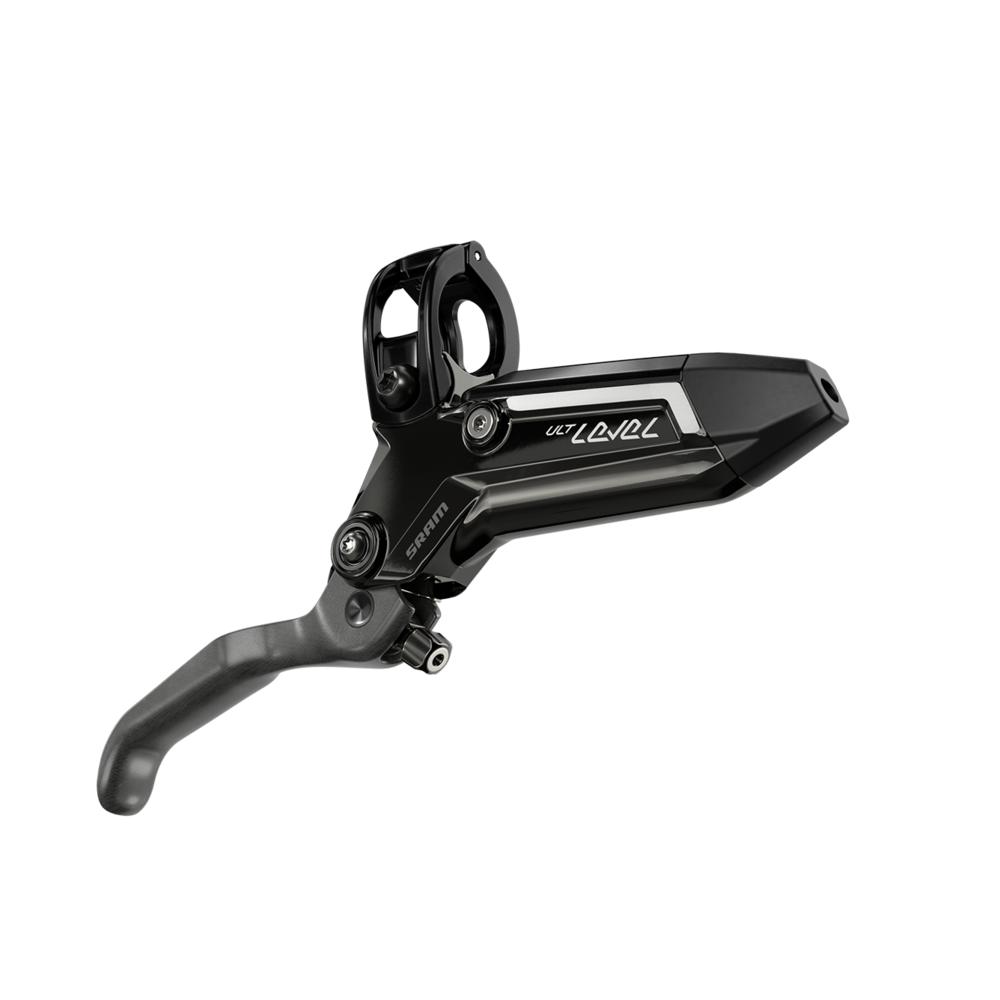

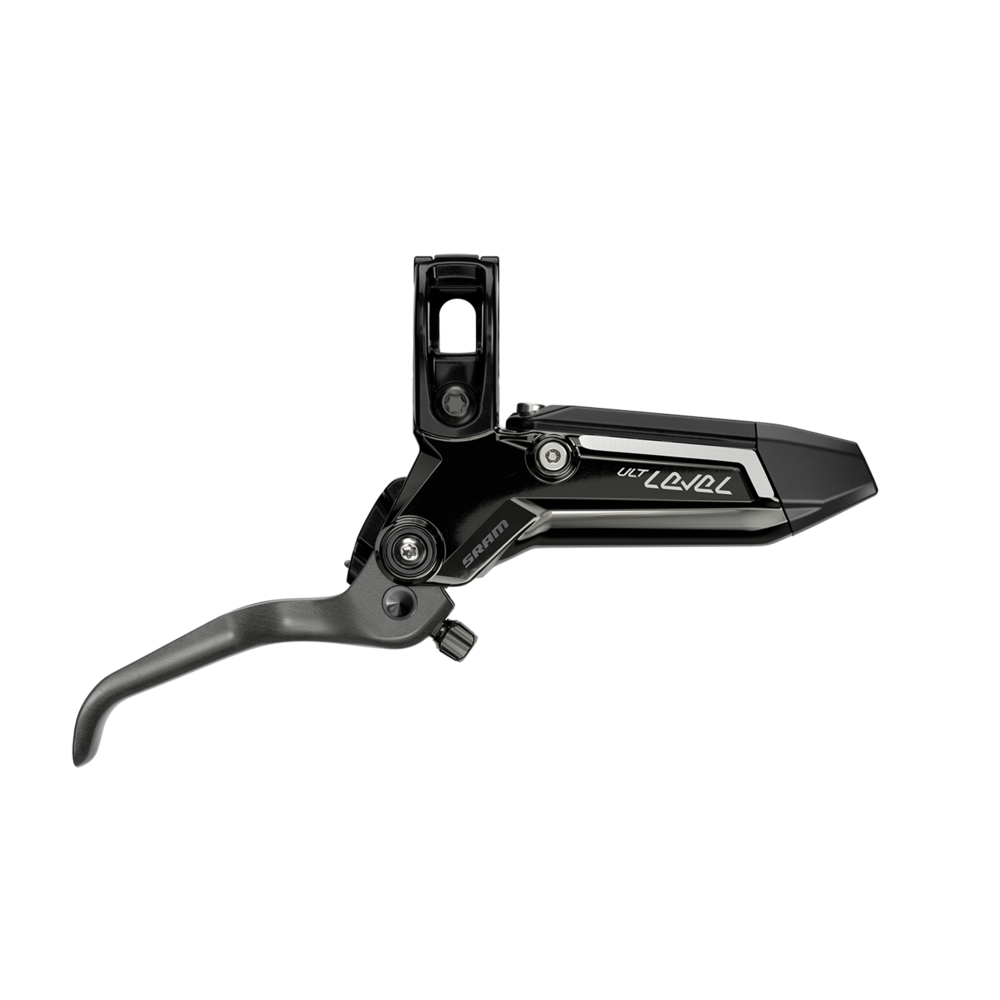

The SRAM DirectLink lever design produces a solid and positive feel the moment you press the lever to activate the brake. Offers a practical solution to give you precise control.


Specifications

APPLICATION (DB) MTB
BRAKE TYPE Hydraulic
COLOR (DB) Glossy Black Anodized
BLADE MATERIAL Carbon
ORIENTATION Front rear
PAD TYPE (DISC) Organic with steel backing plate
BRACKET (DISC BRAKE) Direct mount DIR, Intl Std (rear 140 mm, front rotor 160 mm) 0IS, Intl Std (rear 160 mm, front rotor 180 mm) 20I, Intl Std (rear 180 mm, front rotor 200 mm) 40I, Intl Std (rear rotor 200 mm) 60I, Post mount (20 mm bracket) 20P, post mount (20 mm spacer) 20S, post mount (40 mm bracket) 40P
REACH ADJUSTMENT Tool-free
REGULAR CONTACT NO
HYDRAULIC FLUID DOT 5.1
LEVER PIN Bearing
WEIGHT (G) 254
WEIGHT BASED ON Rear-based, SJ, DIR, 1800mm, with pads (no clamp, no mounting hardware, no pad spacer, no rotor/bolts)
