Home » FOX 38 Float Grip X2 29'' Factory Fork 170mm Boost Kabolt 15x110mm 44mm Offset
Fox

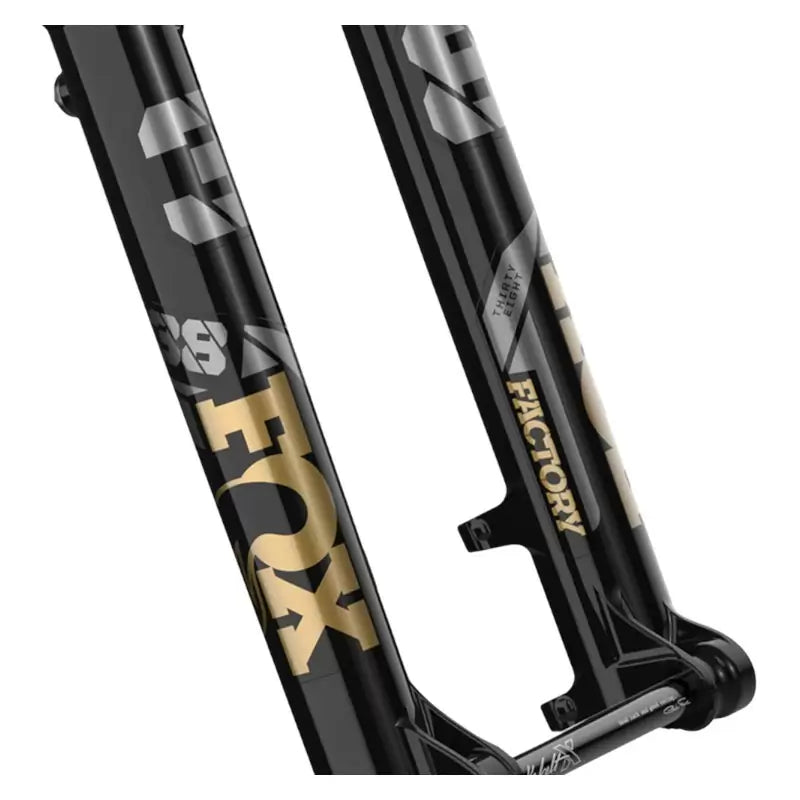

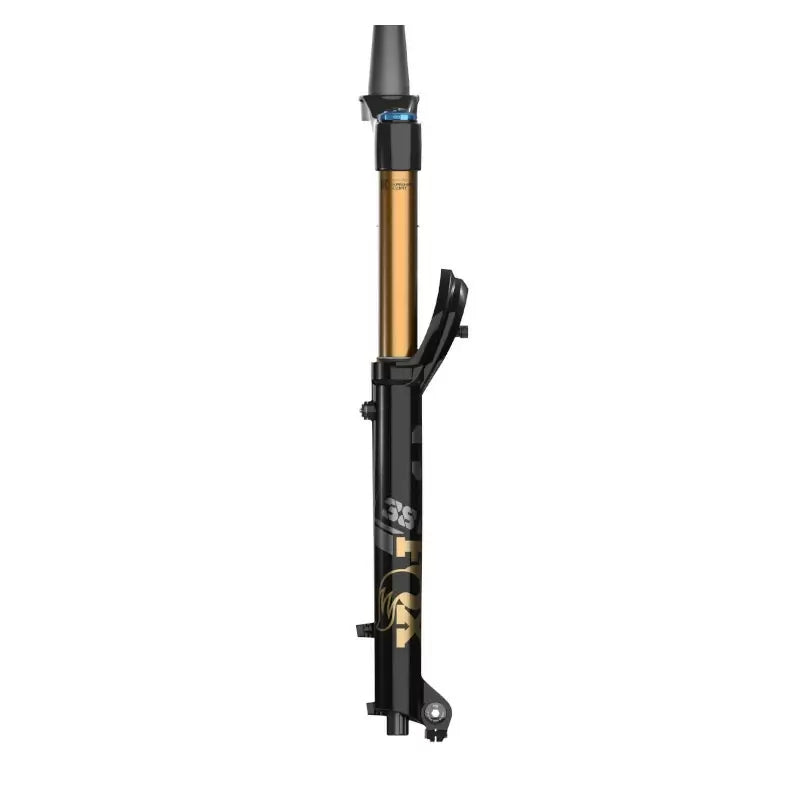

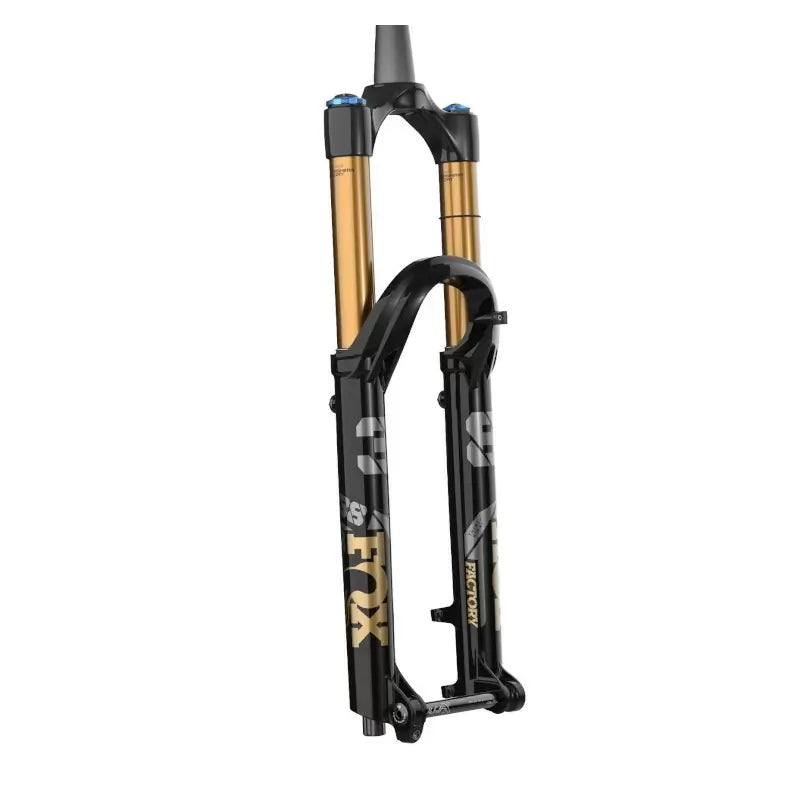

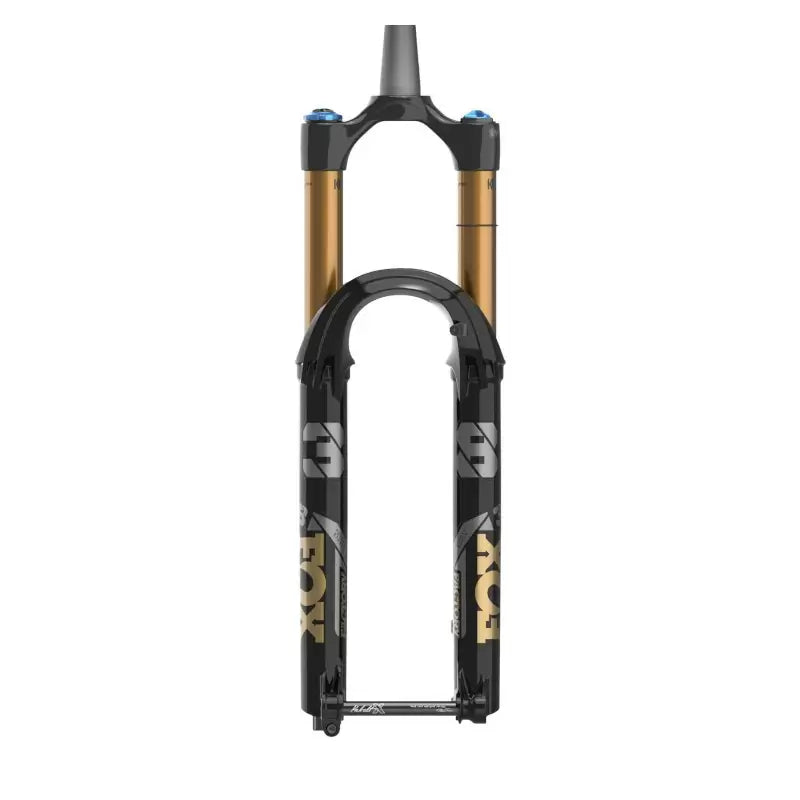

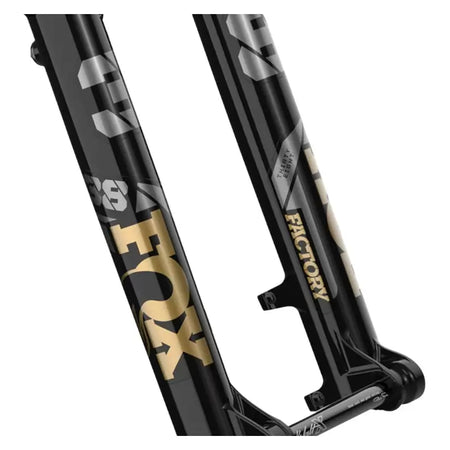

FOX 38 Float Grip X2 29'' Factory Fork 170mm Boost Kabolt 15x110mm 44mm Offset

Out of stock
SKU: 910-21-285 Barcode: 0821973490571
€1.591,94 incl. VAT
-11% €1.779,47 €1.591,94 incl. VAT

Perfect when you need a long-travel fork.

Optimized for 160-180 mm of travel, the 38 redefines the capability of a single crown long-travel fork, setting a new benchmark for safety, performance, and durability.

Excellent downhill performance with increased traction and even more control at speed. The most adjustable, supportive, and smooth downhill-focused shock created by FOX. A lightweight bolted axle that reduces weight while increasing torsional stiffness and reducing friction between the upper and lower fork stanchions for smoother suspension travel.

Pressure equalization via button (bleeds) and volume increase to relieve pressure build-up (bypass channels) allow better sensitivity to small bumps and improved responsiveness.

Features:

  • Size: 1-1/8 - 1.5
  • Wheel: 29
  • Material: Aluminum
  • Color: Black
  • Brakes: Disc
  • Hub: PP15/110
  • Travel (mm): 170

Specifications:

  • Usage field: All Mountain, Enduro
  • E-bike ready: no
  • Wheel size: 29"
  • Fork crown/handlebar clamp material: aluminum/aluminum
  • Fork crown diameter: 58 mm
  • Stanchion material: aluminum, Kashima (gold coating)
  • Stanchion diameter: 38 mm
  • Down tube material: aluminum
  • Axle standard: Boost Kabolt-X thru axle 15x110 mm
  • Steerer tube: tapered from 1.5" to 1 1/8" (transition from 40 mm to 28.6 mm at 80 mm +/-3 mm)
  • Fork steerer length: 265 mm
  • Suspension travel: 170 mm
  • Suspension system: Float Air, air
  • Spring characteristic adjustment: yes, via volume spacer
  • Damping: GRIP X2, closed cartridge
  • Adjustment options: high-speed compression (HSC): 8 clicks | low-speed compression (LSC): 18 clicks | high-speed rebound (HSR): 8 clicks | Rebound at low speed (LSR): 16 clicks
  • Lockout: none
  • Installation height: 583.7 mm
  • Brake mount: PM7, post mount (min. brake rotor 180 mm)
  • Maximum allowed brake disc size: 230 mm
  • Maximum tire diameter: 762 mm
  • Maximum tire width: 2.6" or min. 6.0 mm tire clearance at fork bridge
  • Offset: 44 mm
  • Weight: 2300g
