Home » Cérvelo Caledonia-5
Cervelo

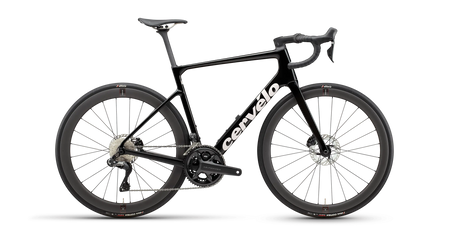

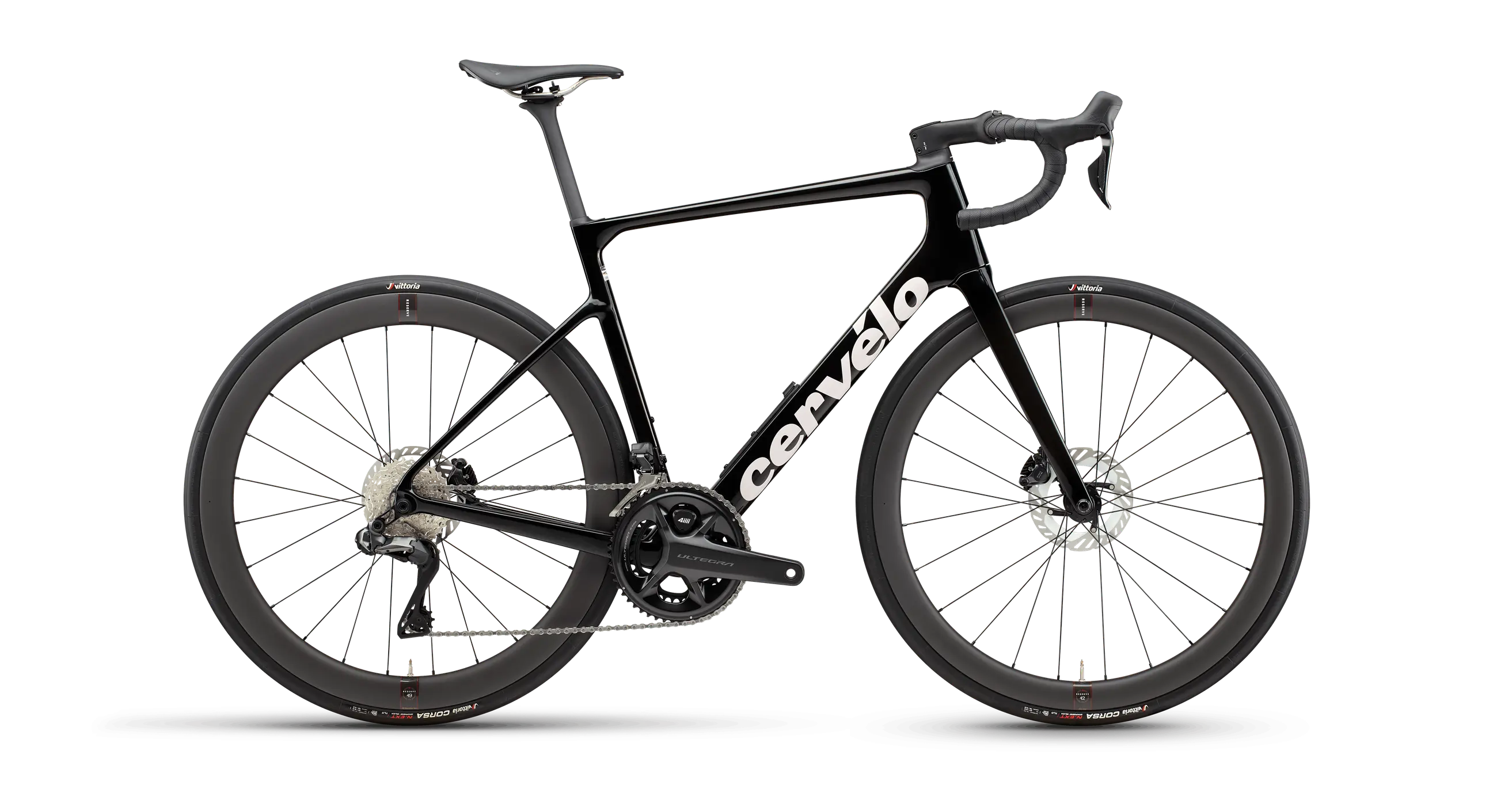

Cérvelo Caledonia-5

Out of stock
Color
Size
€6.854,73 incl. VAT
-15% €8.064,57 €6.854,73 incl. VAT
Dimensions 48, 51, 54, 56, 58, 61
Fork Cervélo All-Carbon, Tapered Caledonia-5 Fork
Headset FSA IS2 1-1/4 x 1-1/2
Stem Cervélo ST32 Alloy
Handlebar Cervélo HB13 Carbon, 31.8mm clamp
Seatpost Cervélo SP24 Carbon
Saddle Selle Italia NOVUS BOOST EVO SuperFlow Ti
Shifters Shimano Ultegra, R8170, 12 speed
Brake calipers Shimano Ultegra
Brake disc Shimano CL800 Centerlock
Front derailleur Shimano Ultegra, R8150, 12 speed
Rear derailleur Shimano Ultegra, R8150, 12 speed
Cassette Shimano Ultegra 11-34, 12 Speed
Chain Shimano M8100, 12 speed
Crankset Shimano Ultegra R8100, 52/36T, 12 Speed, 4iiii Precision Pro, GEN3+ Dual Sided
Bottom bracket FSA, BBright thread together, 24mm spindle
Wheels Rear: Reserve 49, 24.5mm IW, Zipp 176,12x142mm, HG freehub, 24H, centerlock, tubeless compatible Front: Reserve 42, 25.5mm IW, Zipp 76, 24H, centerlock, tubeless compatible
Thru-axle Cervelo Aero Thru-Axles, 12x100/142
Tires N.EXT TLR G2.0 700x30mm stroke
Maximum tire width (actual)

36mm








48 51 54 56 58 61
Reach | mm 360 369 378 387 396 405
Stack | mm 505 530 555 580 605 630
Head Tube Angle 70.5° 71.5° 72° 72° 72° 72°
Front Center | mm 580.5 582.7 592.5 609.5 627 644.1
Bottom Bracket Drop | mm 76.5 76.5 74 74 71.5 71.5
Head Tube Length | mm 89.5 110.3 136.3 162.6 191.5 217.8
Top Tube Length | mm 502 522 543 565 581 598
Seat Tube Angle 74.5° 74° 73.5° 73° 73° 73°
Standover Height | mm 701 743 775 798 824 847
Trail | mm 57.8 57.8 57.8 57.8 57.8 57.8
Wheel Size 700C 700C 700C 700C 700C 700C
Fork Offset | mm 60 54 51 51 51 51
Wheelbase | mm 983.3 985.6 996.3 1013.4 1031.8 1048.9
Chainstay Length | mm 415 415 415 415 415 415
