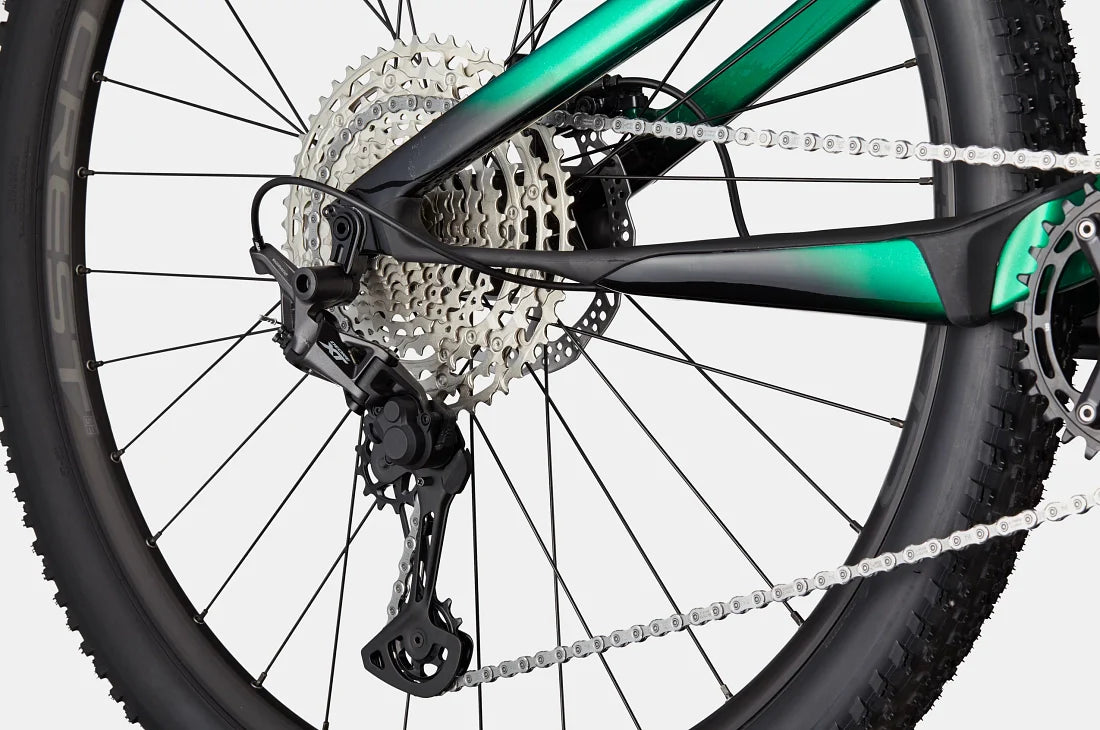

Cannondale Scalpel Carbon 4

The new limit

The perfect XC race bike. Pioneering suspension, aggressive geometry, and unmatched lightness give wings to your wheels.

The new Scalpel frame is one of the lightest full-suspension MTB frames ever made: it features a rear shock but weighs just over 1,900 grams. Incredible suspension, impeccable handling, and extreme lightness: the perfect recipe to win.

Strengths

• Lightweight FlexPivot carbon frame / Fox Float Performance 32 SC fork / 100mm travel (front/rear)
• Shimano XT/Deore 12-speed group / Deore 6100 hydraulic disc brakes
• WTB STX i23 tubeless-ready rims / Shimano MT400 hubs

Specifications

Details

• Platform

  Scalpel
• Model Name

  Scalpel Carbon 4
• Model Code

  C24402M

Frame Kit

• Frame

  Scalpel Carbon, 100mm travel, Proportional Response Tuned, FlexPivot Chainstay, PF30-83, Tapered Headtube, Speed Release 12mm thru axle, Ai Offset, Stash compatible
• Fork

  Fox Float Performance 32 SC, 100mm, 15x110mm thru-axle, tapered steerer, 51mm offset, remote-actuated
• Headset

  Integrated Sealed Bearing, Tapered
• Rear Shock

  Fox Float DPS Performance Elite EVOL, remote lockout, adjustable rebound

Drivetrain

• Derailleur

  Shimano XT
• Shift Levers

  Shimano Deore M6100, 12-speed
• Chain

  Shimano Deore 6100, 12-speed
• Crankset

  Cannondale 1, BB30a, OPI SpideRing, 32T, Ai Offset
• Cassette

  Shimano Deore M6100, 10-51, 12-speed
• Bottom Bracket

  Cannondale Alloy PressFit30

Brakes

• Brakes

  Shimano Deore 6100 hydraulic disc, 160/160mm RT54 rotors
• Brake Levers

  Shimano Deore hydraulic disc




  *The manufacturer reserves the right to change information on the website without notice, including specifications, models, colors, and materials.

  *Images are for illustrative purposes only and may not correspond to the product description.




  Geometry
